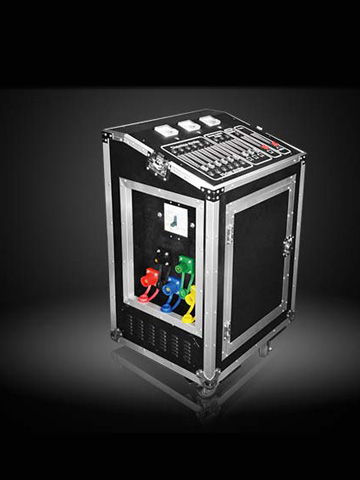

dimmer 63ax6

MODEL NO. LTEB-001
Input voltage 380VAC±10%
Max.input current 30A
Input voltage frequency 50/60Hz
Supply voltage dimming range 0-100%
On state voltage drop 1.5V
Off state leakage current ＜1mA
Turn-on time(50Hz) 1MS
Turn-off time 10MS
Dielectric withstanding voltage 2500VAC，1min
(Dimensions 600Lx600Wx1020H(mm
N.W.
IP class IP22
